Description

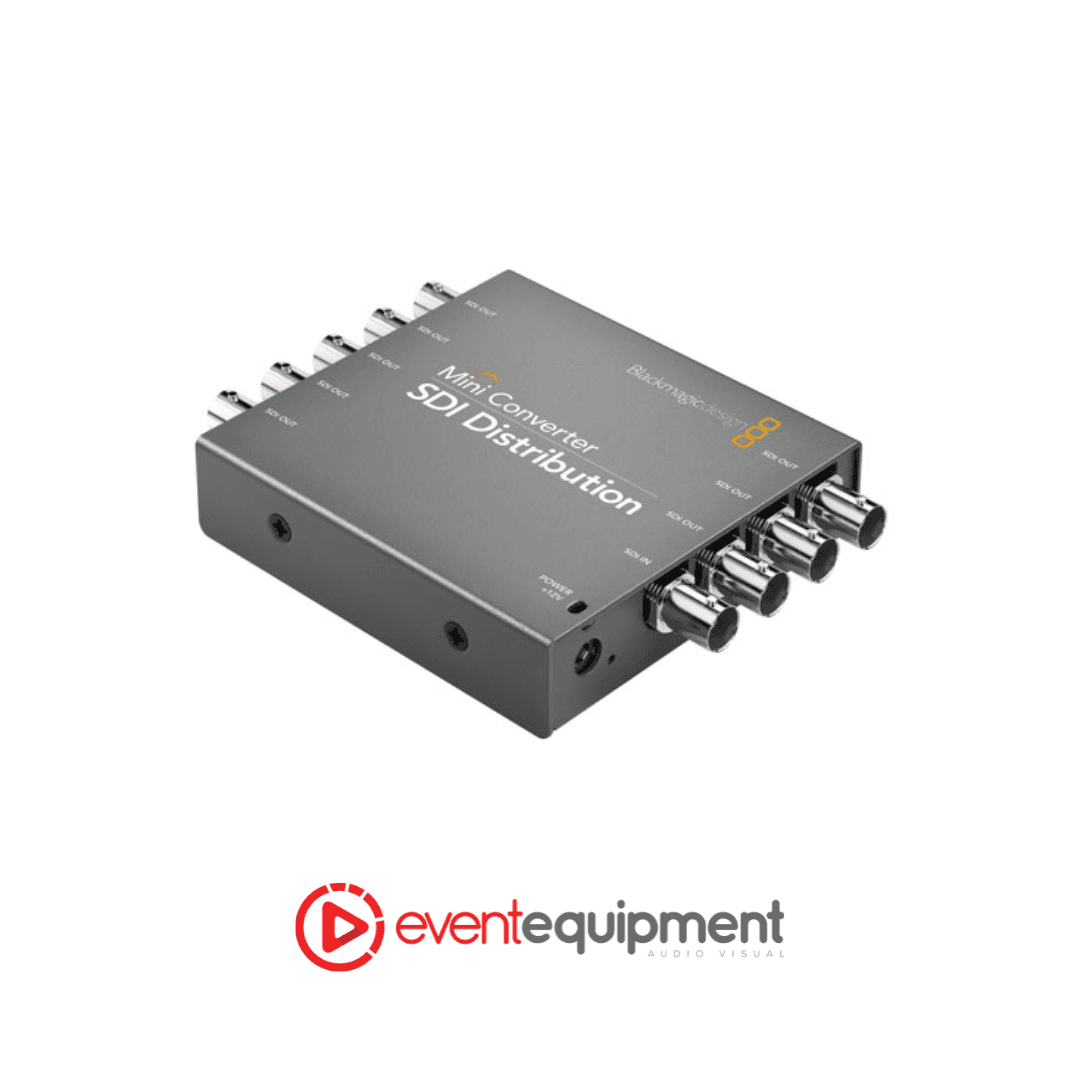

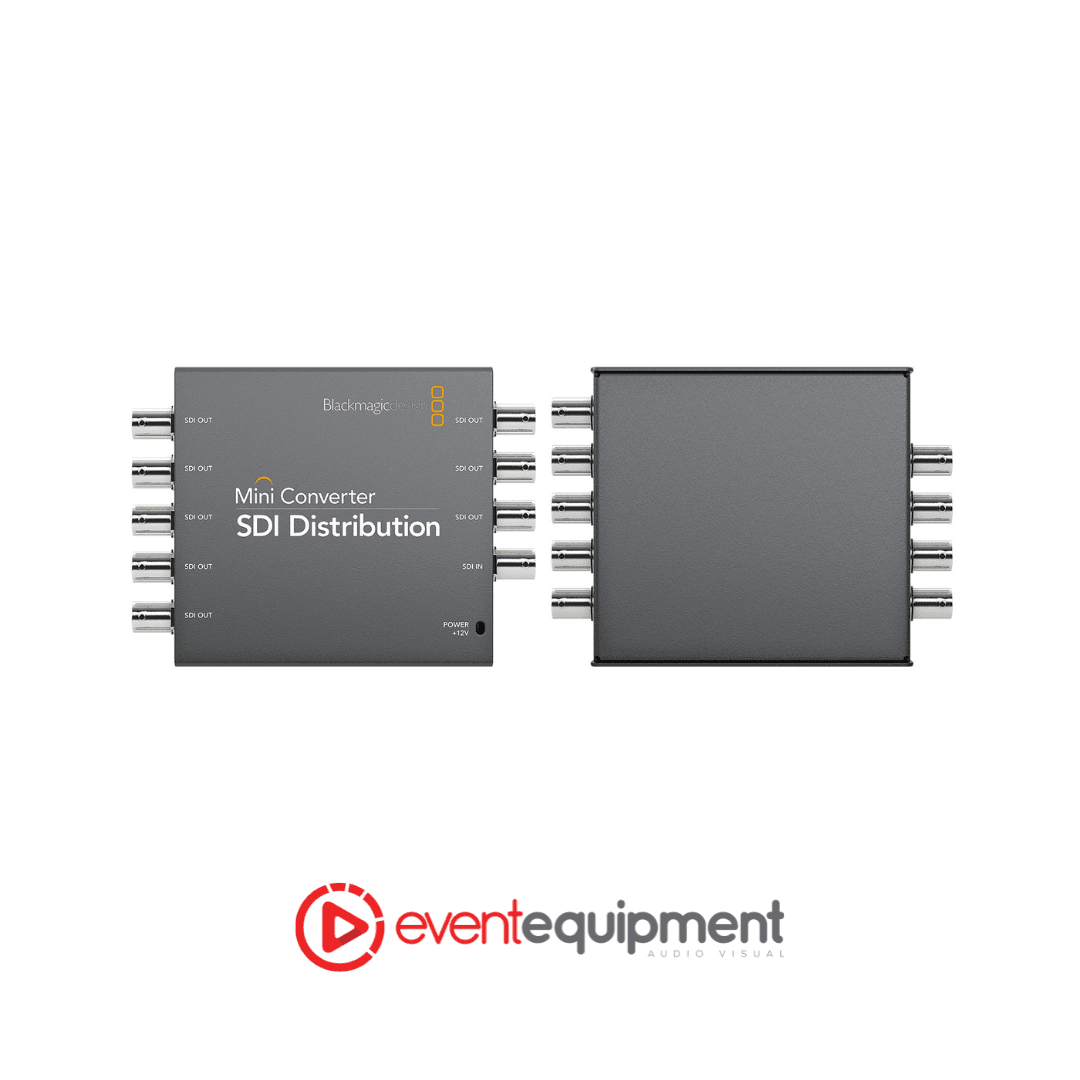

Distribute a single SDI signal to multiple destinations with the Mini Converter SDI Distribution 1:8, available for hire in Melbourne, Sydney, and Brisbane. This professional-grade 3G-SDI distribution amplifier allows you to split one SD or HD-SDI input to eight fully re-clocked outputs, ensuring pristine signal quality across your AV or broadcast system.
Mini Converter SDI Distribution – Key Features
Ideal for production, broadcast, and live event applications, this unit is compact, reliable, and supports a wide range of industry-standard formats.
Input: 1 x SD/HD/3G-SDI (auto-detecting)
Outputs: 8 x SD/HD/3G-SDI (fully re-clocked)
Supported Video Standards:
– SD: 525i59.94 (NTSC), 625i50 (PAL)
– HD: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98–60, 1080PsF23.98–30
– 2K: 2K DCI 23.98/24/25p and PsFAudio Support: Embedded audio and ancillary data fully supported
Compliance: SMPTE 259M, 292M, 296M, 424M, 425M, and more
Colour Precision: 4:2:2 and 4:4:4 YUV/RGB
ASI Support: Yes – compatible with ASI signal formats
This converter is perfect for duplicating signals to multiple recorders, monitors, or stage outputs without signal degradation or sync issues.
Applications for SDI Distribution Hire
Broadcasting to multiple SDI displays or confidence monitors
Feeding vision switchers and recorders simultaneously
Distribution of live camera feeds across OB setups
Signal duplication for media walls or LED screen processors
ASI signal routing for broadcast transmission workflows
Its compact design and professional reliability make it a go-to solution for production teams working in complex or multi-zone environments.
Why Hire SDI Distribution Equipment From Us?
Fully tested, industry-standard units
Compatible with all major cameras, switchers, and SDI-based gear
Supplied with power and mounting options
Available with BNC cabling upon request
Fast hire and support available across Melbourne, Sydney, and Brisbane
How To Hire an SDI 1:8 Distribution Amplifier in Melbourne, Sydney & Brisbane
Use our Quick Quote form or open the Chat Window to book the Mini Converter SDI Distribution 1:8 for your next production in Melbourne, Sydney, or Brisbane. We can also provide matching SDI cabling and signal converters if required.
